INTU FR GRAPHITE
The INTU FR GRAPHITE is graphite fire-retardant mass swells under the influence of fire, closing the opening around the installation and any gaps, creating a barrier that ensures the partition remains tight and insulating up to EI 120.
INTU FR GRAPHITE TDS EN
INTU FR GRAPHITE ETA EN
Where to use
The intumescent graphite sealant INTU FR GRAPHITE is intended for fire protection of penetration seals, specially:
- combustible pipes diameter of Ø ≤ 110mm
- bundles of copper pipes for air conditioning

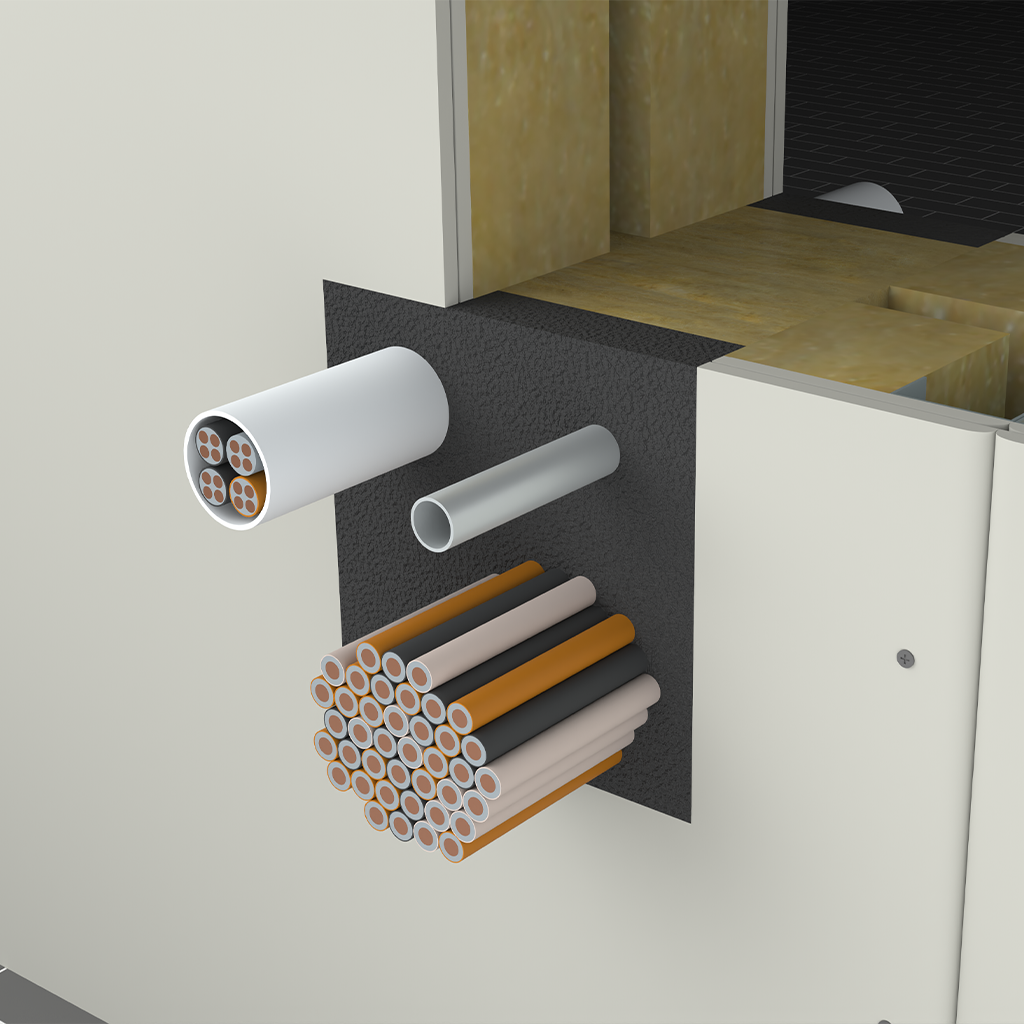

- single cables and cable bundles

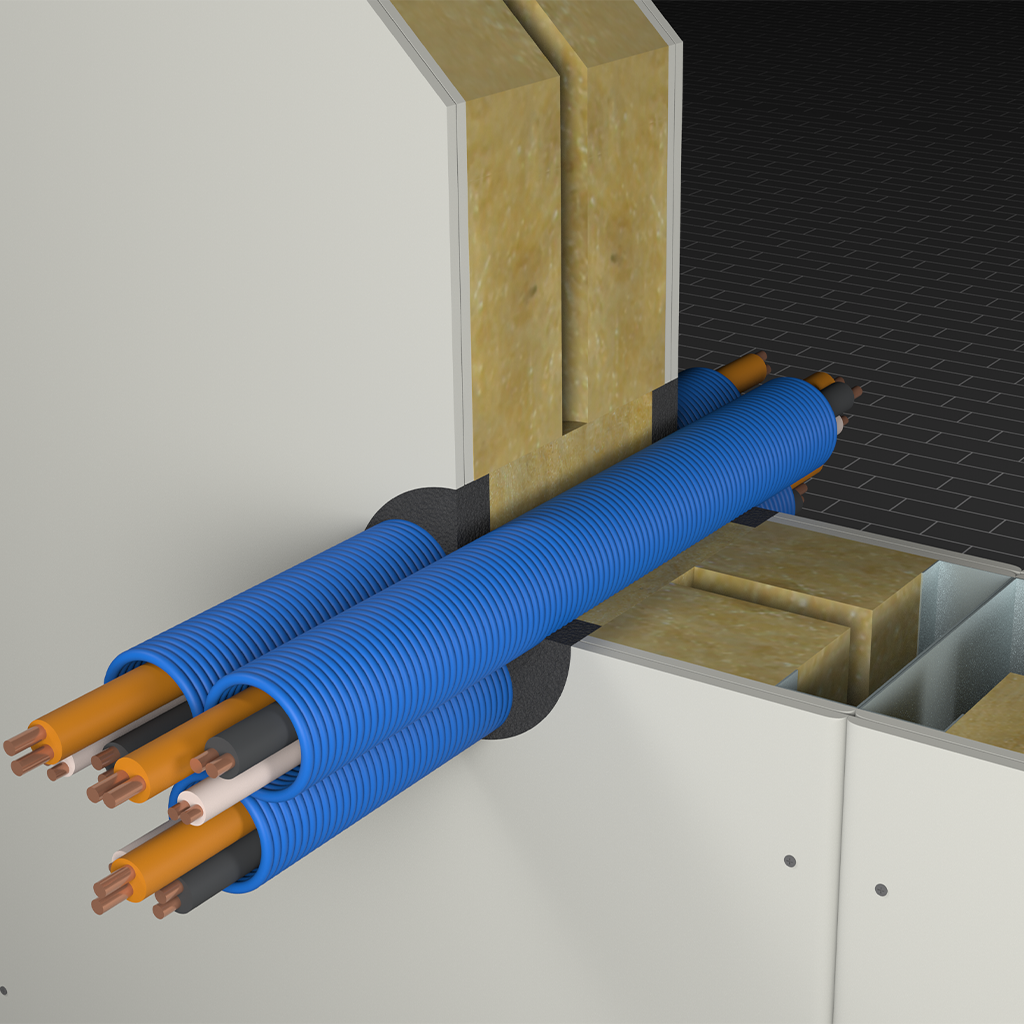

- cables in casting pipes and AROT type pipes

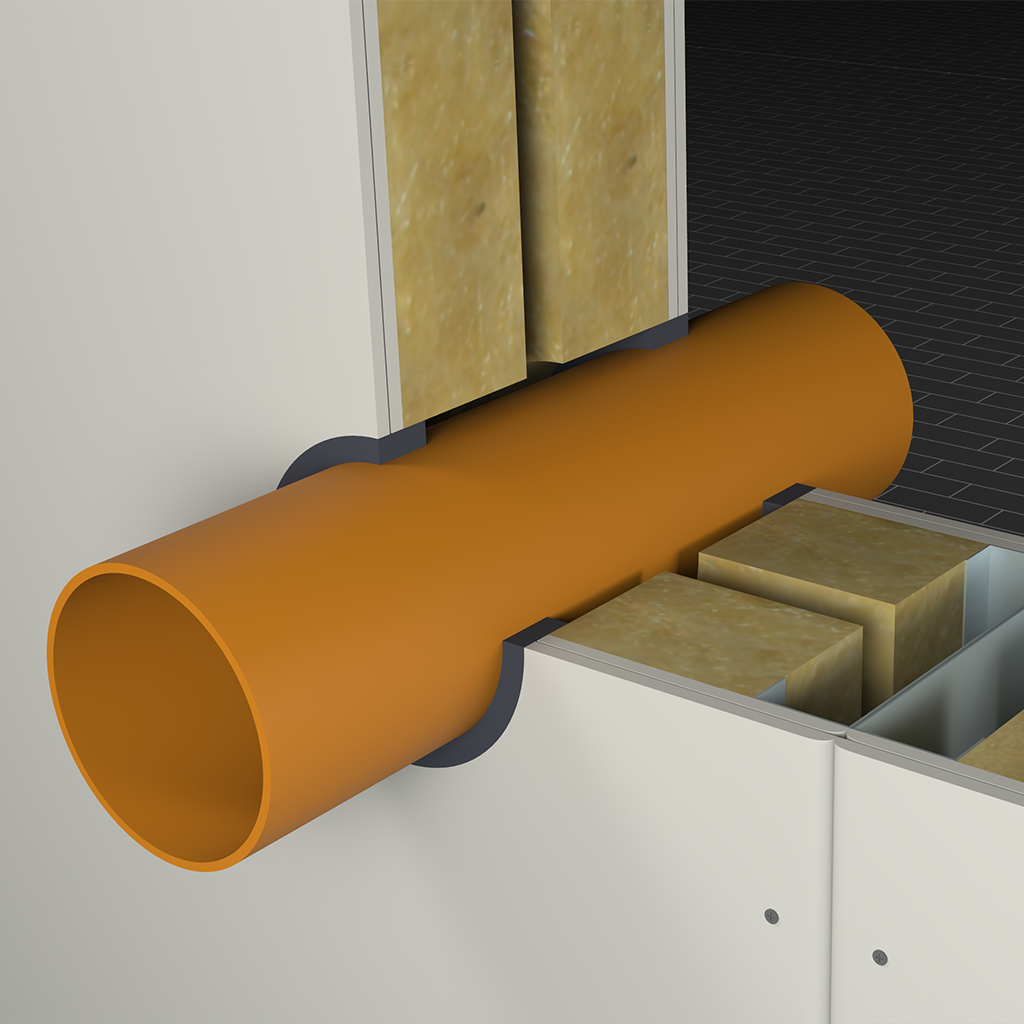

Flexible walls:
The wall must be minimum 100 mm thickness with a frame structure of steel or wooden sections covered on both sides with a minimum of 2 layers of panels with a thickness of min 12,5 mm.
Rigid walls:
The wall must be minimum 100 mm thickness, made of concrete, reinforced concrete, concrete blocks, cellular concrete, ceramic brick (solid, hollow or lattice) or silicate brick (solid or hollow) with a density of min. 450 kg/m3.

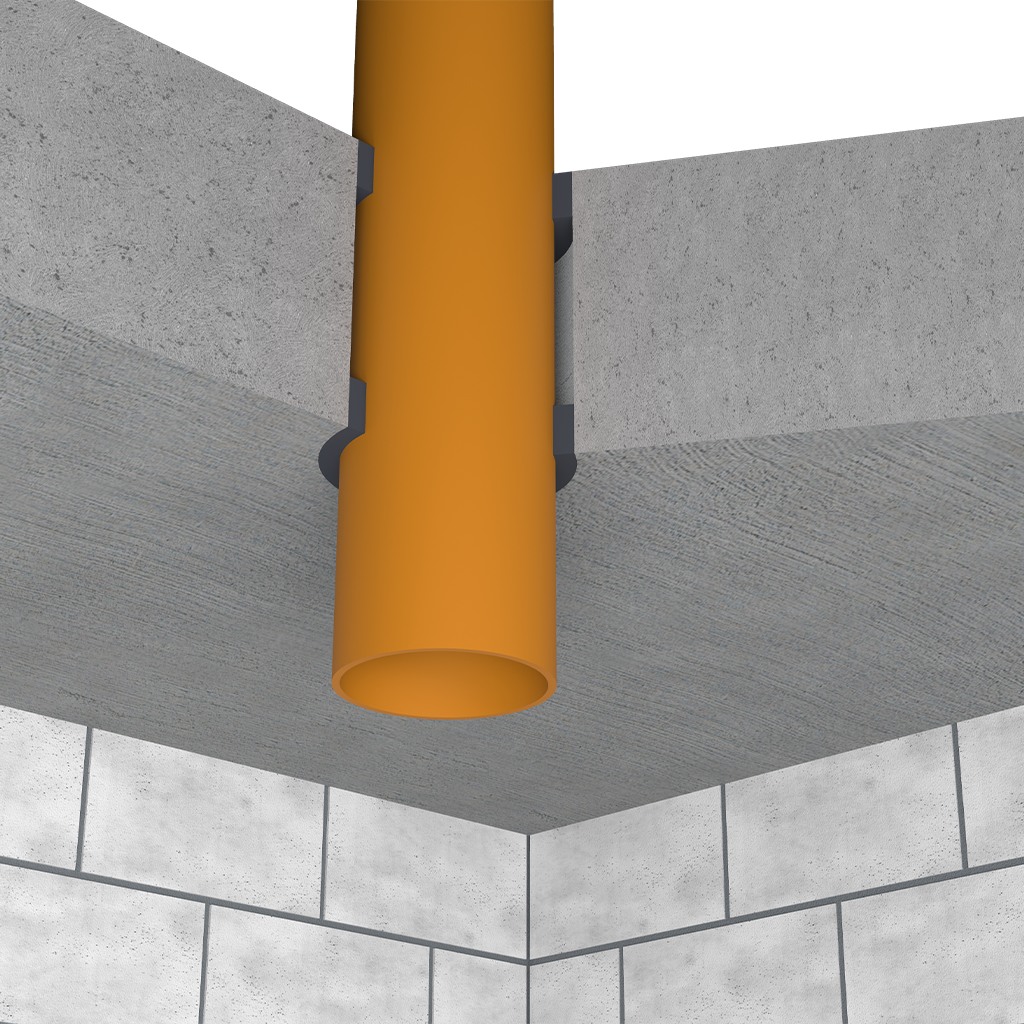

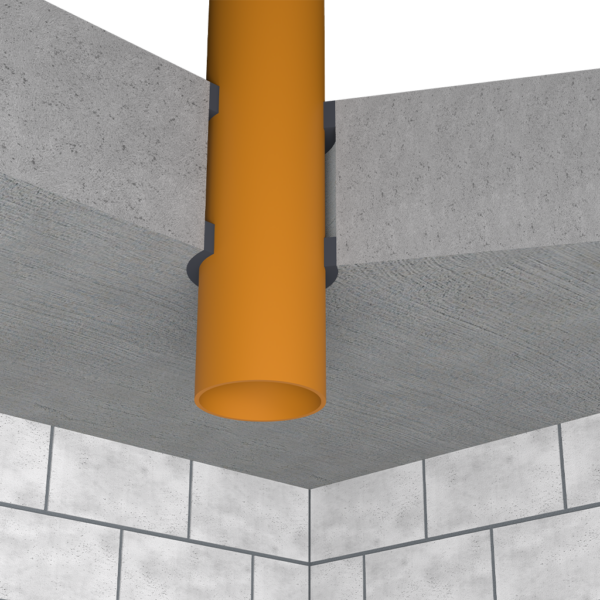

Rigid floors:
The floor must be at least 150 mm thick made of concrete, reinforced concrete or cellular concrete with a minimum density of 550 kg/m3.
Compilance
- Test standard:
EN 1366-3 / EAD 350454-00-1104 - European Technical Assessment:
ETA 24/0152 of 28/03/2024 - Declaration of Performance:
DoP 3/2024 - Certificate of Constancy of Performance
1488-CPR-1109/W
Availability

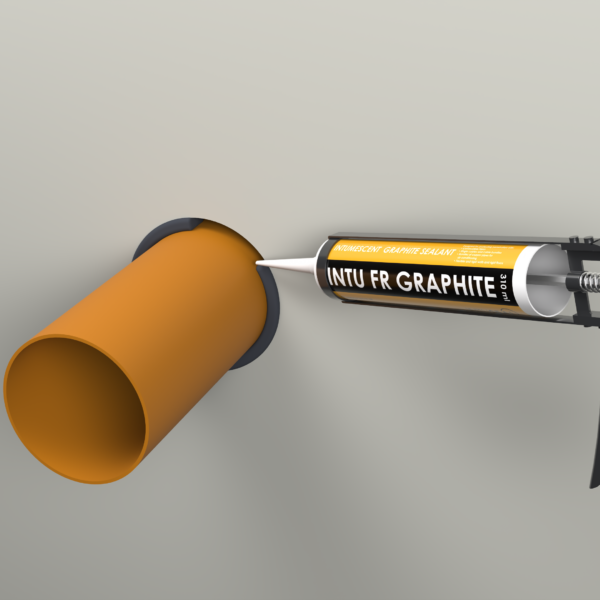

Installation
Transport & storage
Store in dry and cool conditions, at a temperature between +5°C to +35°C. Usefulness 12 months from the date of production placed on the package.
