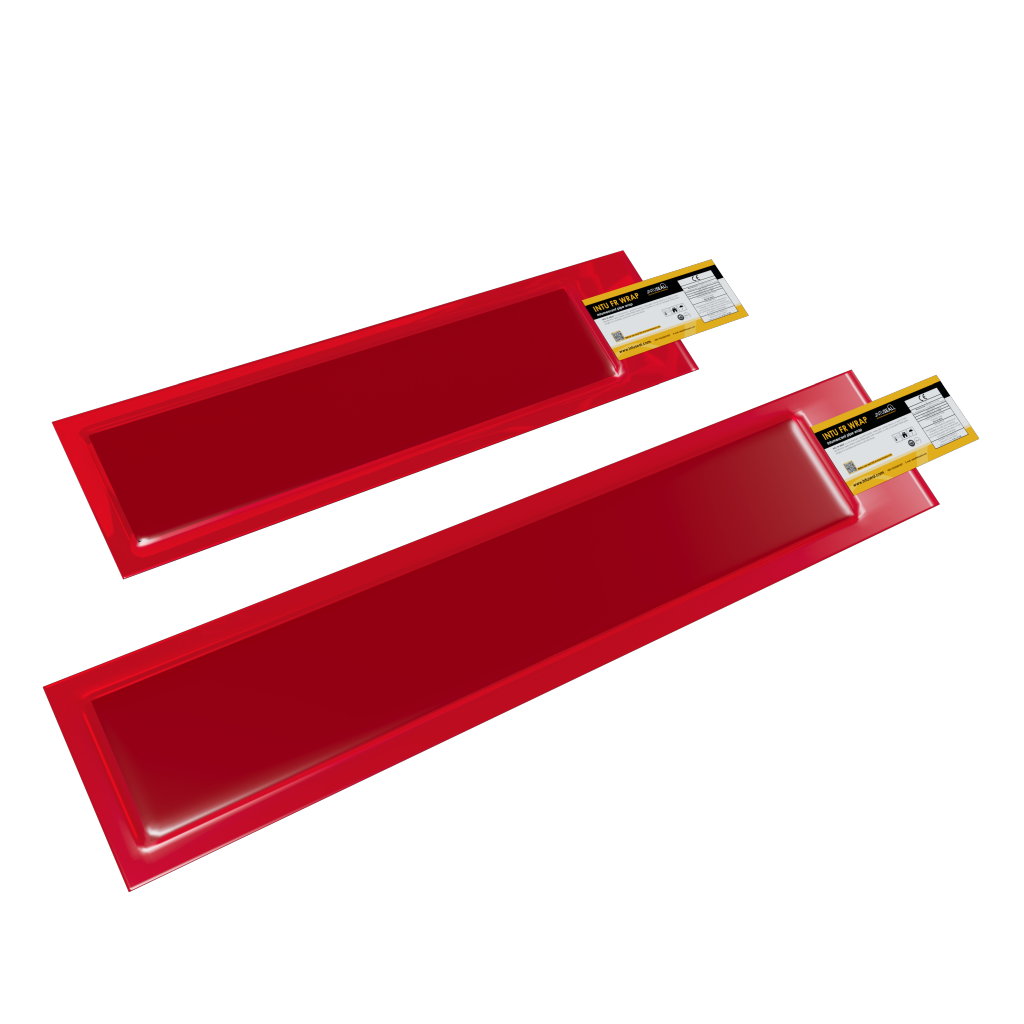

INTU FR WRAP

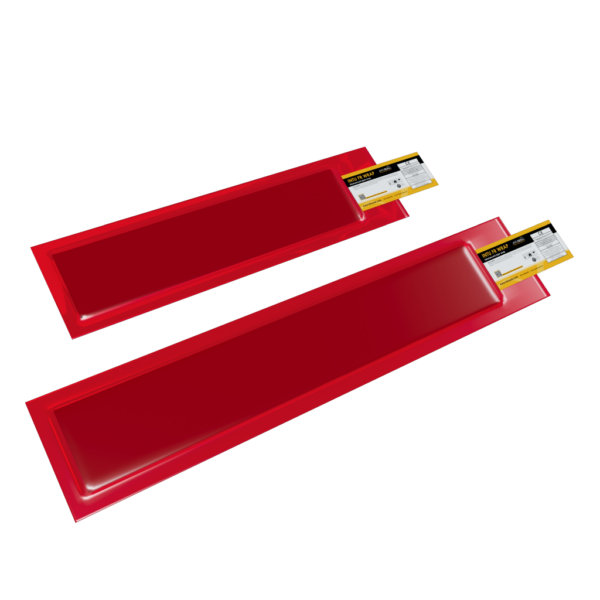

The firestop wrap INTU FR WRAP is made of a graphite-based material which swells during a fire, preventing the spread of fire and creating a barrier that ensures the partition maintains tightness and insulation up to EI 240.
INTU FR WRAP TDS EN
INTU FR WRAP ETA ENWhere to use
The INTU FR WRAP band is used for fire protection of plastic, composite and multilayer composite pipes passing through fire separation partitions individually or in bundles, as well as flammable and non-flammable pipes in insulation.

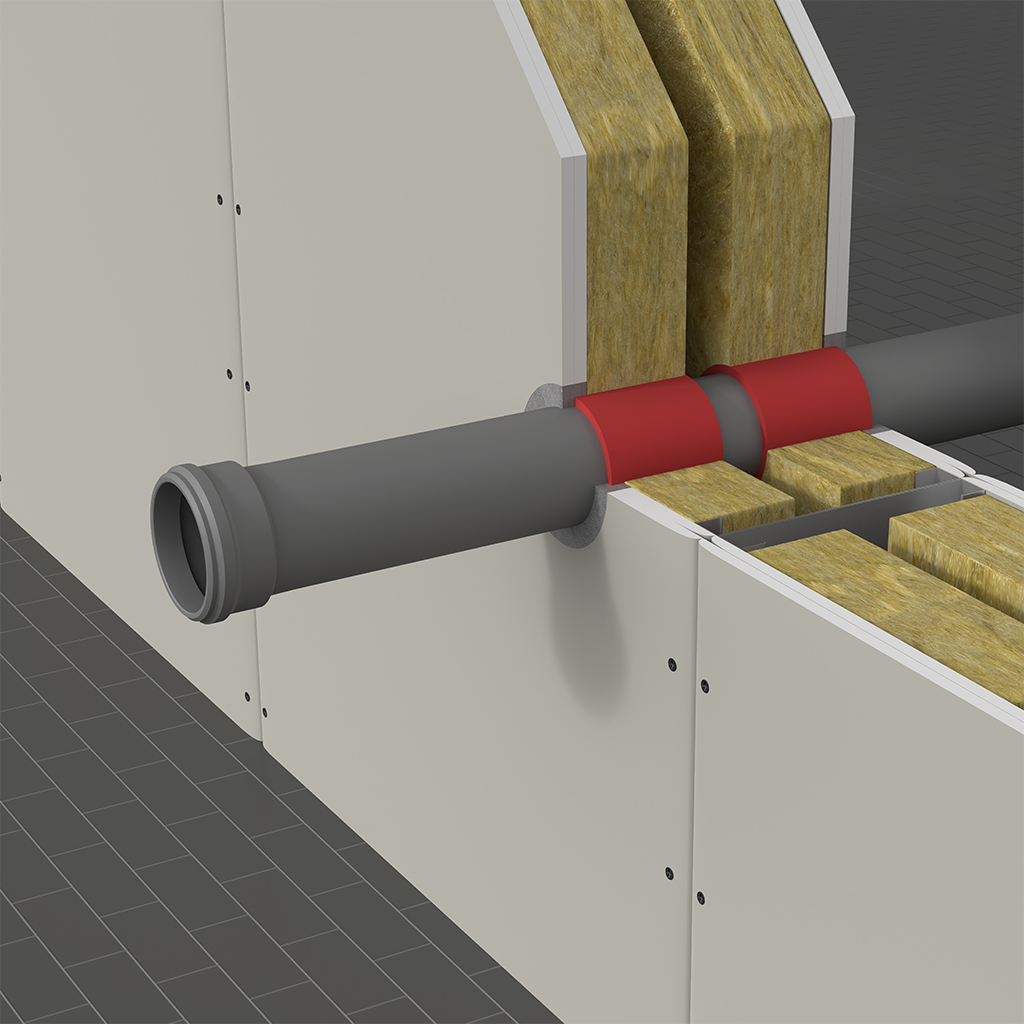

Flexible walls: The wall must be 100 mm minimum thickness. Must have steel profile structure covered on oth sides with minimum 2 layers of boards with thickness 12,5 mm.
Rigid walls:

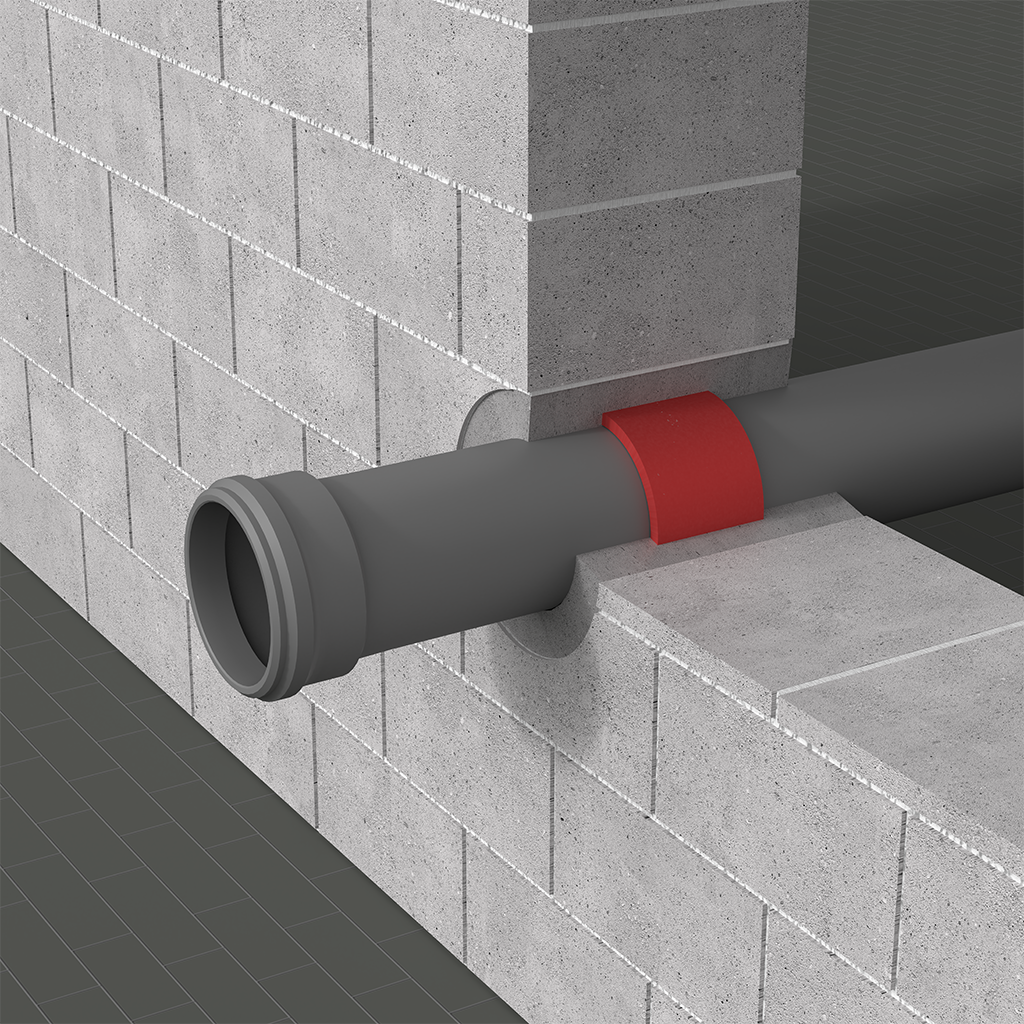

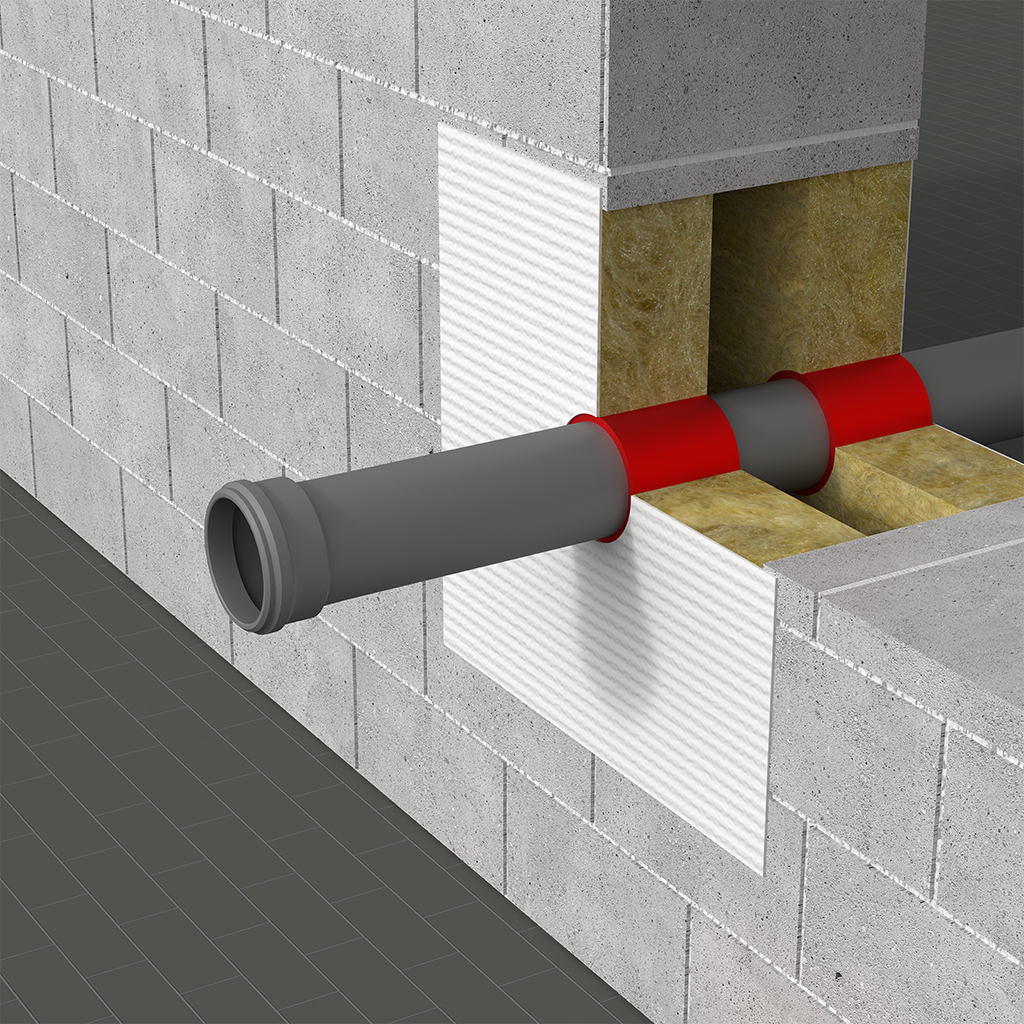

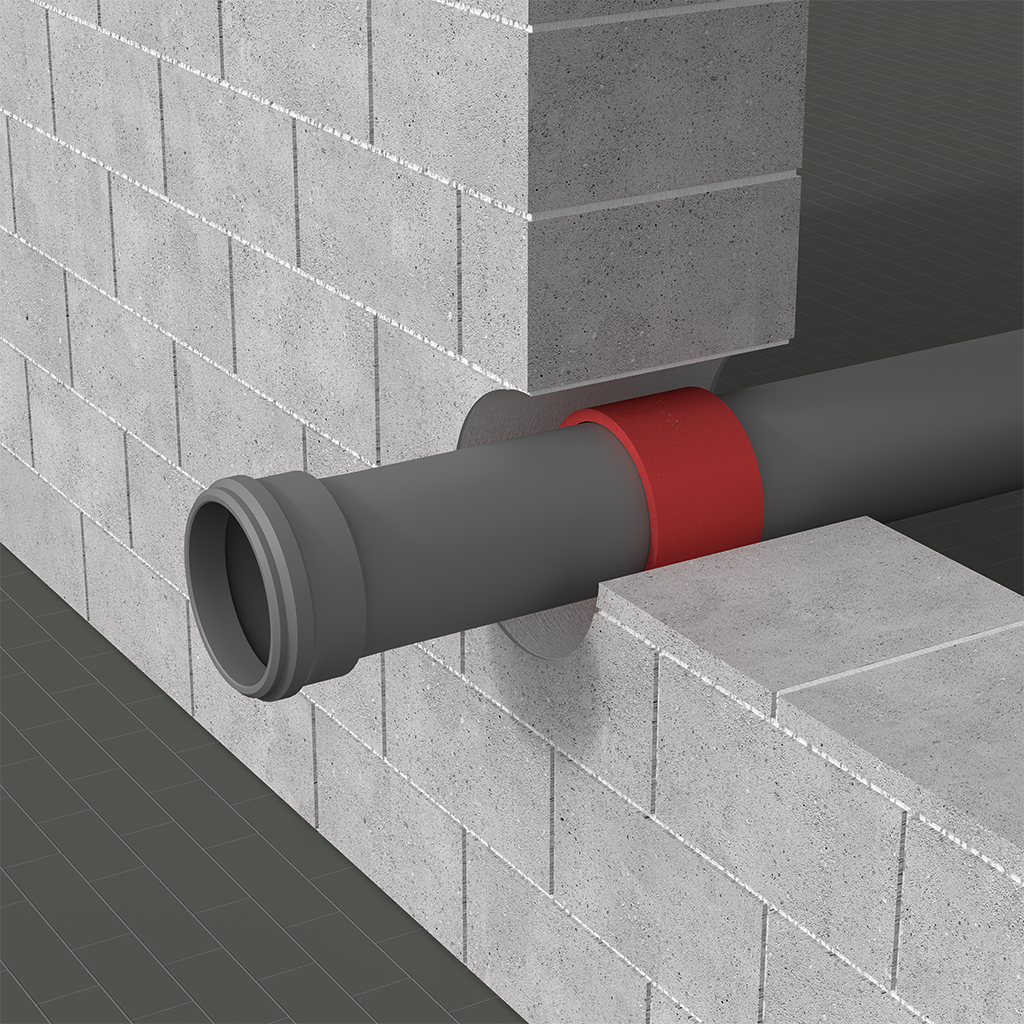

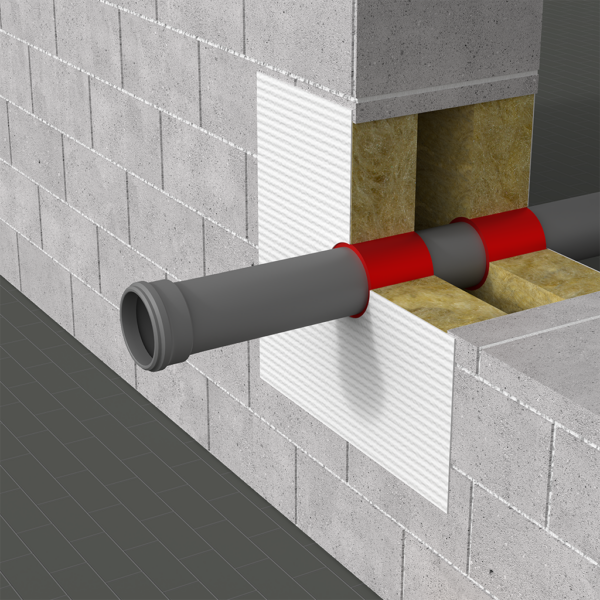

The wall must be 150 mm minimum thickness. Must have concrete, cellular concrete or masonry structure, with minimum density 450 kg/m3.
Rigid floors:
The floor must be 150 mm minimum thickness. Must have concrete, cellular concrete or masonry structure, with minimum density 550 kg/m3.
Compliance
Compilance:
- Test standard:
EN 1366-3 / EAD 350454-00-1104 - European Technical Assessment:
ETA 18/0593 of 31/12/2018 - Declaration of Performance:
DoP 1/2019 - Certificate of Constancy of Performance
1488-CPR-0722/W

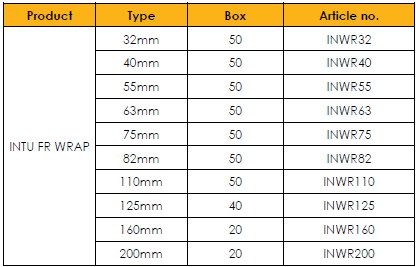

Availability

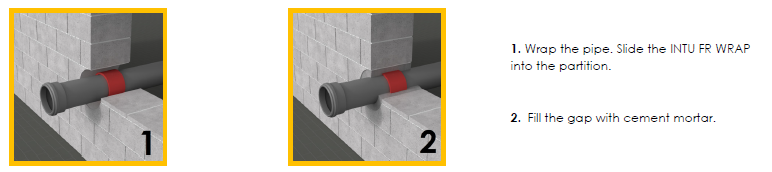

Installation
Transport & storage
It is recommended to store in dry internal conditions at temperatures between + 5°C and + 35°C.
